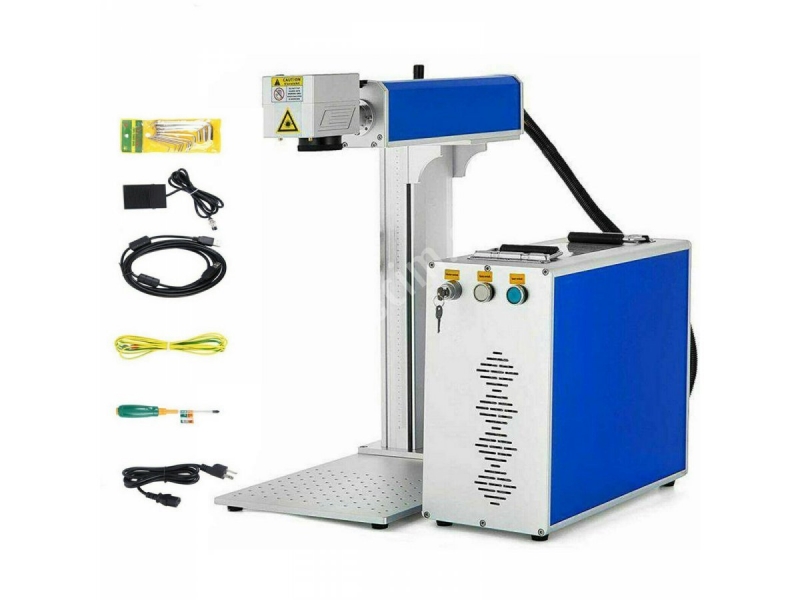

DP30W Fiber Marking Laser Machine

You can contact us for detailed technical information, references and sales information.

We would be happy to welcome you in our Istanbul Office

2 YEAR WARRANTY

Original Raycus Q Series Source - JCZ Ezcad2 Control Card (Turkish) - Sino Galvo

12 Months Installment Opportunity for Credit Card

USAGE AREAS

​All Metal Types (Silver, Gold, Platinum, Copper, Aluminum, etc.) Key Restoration, MDF, Parquet, Leather, Many Plastic Types, Circuit Boards, Board Cards, Promotional Products, Mirrored and Acrylic Plexiglasses, Phone Cases, Painted Products , Bank Cards, Carbon Based Materials etc.

GENERAL FEATURES AND INSTALLATION CONTENT

  • More than 1,000 Patterns and Drawings
  • Professional Drawing Program
  • Goggles
  • Foot Pedal
  • Raycus Q Series Source
  • 110x110 - 150x150 - 300x300 mm Lens Options
  • Manual Focus
  • Sino Galvo
  • Table Model
  • 100.000 Hour Laser Life
  • Low Energy Consumption
  • Double Red Pointer
  • Turkish Software


DETAILED TECHNICAL INFORMATION

Laser Power: 30W

Supported Graphics Format: PLT, BMP, JPG, PNG, AI, PCX, TGA, ICO, DXF

Beam Quality: M2<2

Power Stability: (8)<+1% rms

Pulse Repetition Frequency: 20KHZ---100KHZ

Consumption Power: <800W

Minimum Character: 0.1mm

Laser Wavelength: 1064nm

Working Area: 110x110 - 150x150 - 300x300 mm

Whole Machine Power: 500W

Cooling Way: Air Cooled

Operating Voltage: 110/220V + 10%, 50/60Hz

Ambient Operating Temperature: -35°C + 50°C

Red Pointer: Dual Laser Pointer

Galvanometer: Sino Galvo

Laser Source: Raycus Q Series

Control Card: JCZ Ezcad2 Turkish Software
